Xtend Voice Logger

The Standalone Voice Logger is a full-fledged, dedicated rack mountable server. It has all the necessary components to store and implement audio logging from Analog/Digital VHF/UHF Transceivers, Wireless Units/Radios, RADAR etc. Configuration and use of the Voice Logger is via the embedded web interface and the system is fully scalable, which means that it can be expanded easily to meet customer requirements. Since the unit comes preconfigured for use, it is easy to setup and is a fit and forget device.

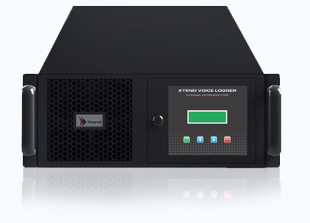

Xtend Voice Logger : Standalone

Hardware Features

  • 19" rack mountable server
  • Built-in LCD and basic keypad
  • Built-in DVD Reader/Writer
  • 2 x SATA HDD for redundant data storage
  • Secure back-panel - No standard PC connectors like USB, Keyboard, Display are exposed for security
  • Back-panel has LAN, Power and individual RJ11 sockets
  • Automatic restart after power failure
  • Can be expanded from 4 ports to 128+ ports using add-on cards
  • Embedded Operating System

The device comes in 4/8/12/16/24/32/..../128+ ports and can be field upgraded as per requirement.

Potential Attributes

  • Audio compression capability to PCM/GSM formats
  • Listen and mark a particular region of recorded audio
  • Allows combining multiple audio files for easy reference
  • Auto-deletion of older records on exhaustion
  • Low disk space notification and board failure alerts
  • Advanced search options with multiple criterion
  • Supports encryption and tamper-resistant storage
  • Redundant storage and automatic data synchronisation
  • Remote secure access with multi-login facility
  • Scalable architecture with centralised management
  • Browser-based centralised data management
  • Easy-to-install, plug and play solution
  • Daily, weekly, monthly and date-wise reports
  • ActiveX audio player with 15+ options
  • Audio logs with date, time, duration and much more
  • Recording, playback and incident mapping
